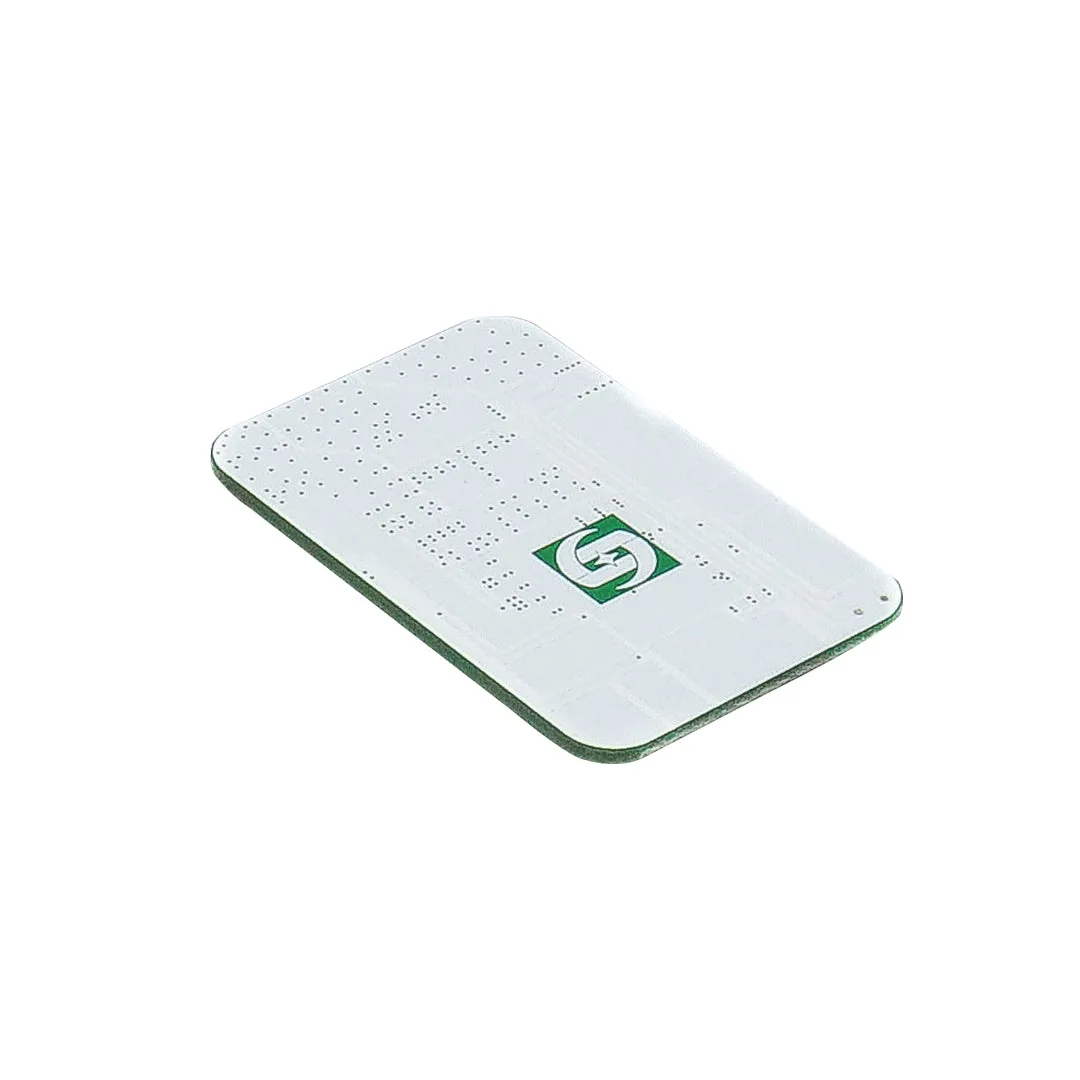

Li-ion BMS Module

6S 20A 24V BMS module is used to charge 6 18650 lithium-ion battery or lithium polymer battery series combination. To recharge these batteries you can use the  with the BMS modules. After use, you can store the batteries in theLithium battery protection modules have over voltage, over current, over-discharge, and short circuit protection.

Specifications:

• Instantaneous discharge current: 25A
• Charging voltage: 25.5V
• Charging current: 20 A (MAX)
• Overcharge detection voltage: 4.28 ± 0.05V
• Overcharge protection delay: 0.1S
• Over discharge detection voltage: 2.55 ± 0.08V
• Overcharge release voltage: 4.08 ± 0.05V
• Over discharge detection delay: 0.1S
• The over-discharge release voltage: 2.9 ± 0.1V
• Overcurrent detection voltage: 150mV
• Overcurrent detection delay: 9MS
• The Overcurrent protection current: 30 ± 3A
• Overcurrent protection release condition: Disconnect the load
• Short circuit detection delay: 250uS
• Short circuit protection Release condition: disconnect negative open
• Main circuit conduction resistance: ≤20mΩ
• Working current: ≤30uA
• Sleep current (battery over-discharge) ≤10uA
• Temperature range: -30 / 80 ℃

Package Includes:

• 1 x BMS 6S 20A  24V 18650 Lithium Battery Charger Protection Module
