One of the most popular models, the Elkay LMABFTL8WSLK Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.

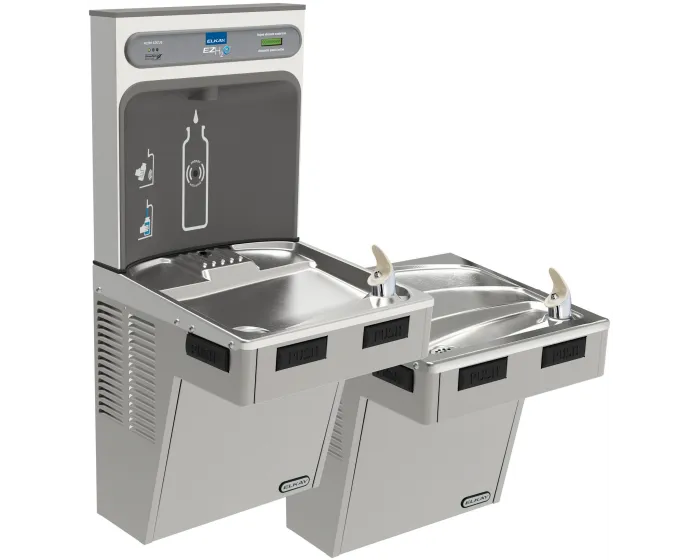

The Elkay LMABFTL8WSLK is a wall-mounted, filtered, refrigerated unit that includes a bottle filler and two drinking fountains. This filtered water station has a Granite Gray color finish.

The LMABFTL8WSLK's drinking fountain features a Flexi-Guard bubbler protected by a flexible antimicrobial mouth guard that helps to protect against injury and microorganisms.

• ADA compliant design
• Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
• Quick fill rate of 1.1 Gallons Per Minute
• Green Ticker™ tracks number of plastic bottles saved from waste.
• Filtered with 3000 gallon capacity WaterSentry

Elkay LMABFTL8WSLK resources:

• CAD (.dwg): - -
• Elkay Bi-Level Water Cooler overview ()
• How to Maintain Filtered Bottle Filling Stations ()

Elkay LMABFTL8WSLK Includes

• Water Cooler
• Water Bottle Filling Station
• Water Sentry Filter

Warranty

Refrigeration System (IF APPLICABLE)

Elkay LMABFTL8WSLK refrigeration system includes 5 year limited warranty.

Electrical Parts & Water System

Elkay LMABFTL8WSLK warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.

• Elkay LMABFTL8WSLK requires installation from licensed plumber.  Email us at [email protected] to be connected to our network of Bottle Filler installation professionals.
• Requires access to electrical connection.
• Product also includes physical copy of installation instructions in package.

Maintenance

Cleaning

It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit.  Routine cleaning is also suggested.

Filter Replacement (IF APPLICABLE)

When filter status light turns to red, the filter needs to be changed.  Follow these steps:

1) Remove the bottom access panel.

2) Unplug unit

3) Unscrew old filter

4) Install new WaterSentry Plus filter.

5) Reset filter light back to green by removing top cover and pressing the black reset button.  Select reset filter.  The light should appear as green.  Detailed instructions on filter light reset are included in produce package.

of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.

How to Maintain Filtered Bottle Filling Stations ()

FAQ

Q: What is included in the Cooler Combo?

A: The Cooler Combo Bottle Filling Stations includes both the Bottle Filler and Water Cooler, which will be delivered in two separate boxes.

Q: Does the shipment include everything for the installation? Does plumber need anything else?

A:  Does not include:

• Shut-off Valve (not furnished)
• 1-1/4” Trap (not furnished).

Q: Does this product come with a Mounting Frame?

A: Cooler Combos come with Hanger Brackets, which are adequate for almost every setup. If more structural integrity is needed, the In-Wall Carrier Mounting Frame () can be ordered separately. Please find further details on Spec Sheet and/or Installation Instructions.

Q: Is there a better, more updated model series available?

A: Yes, the latest model series is the Enhanced line, which includes improvements such as easier maintenance. View the Enhanced line .

Q: Does the Cooler Combo come with filter?

A: Yes, each Cooler Combo comes with one (1) , which has a capacity of 3000 Gallons.

*MADE IN THE UNITED STATES.
