Description:

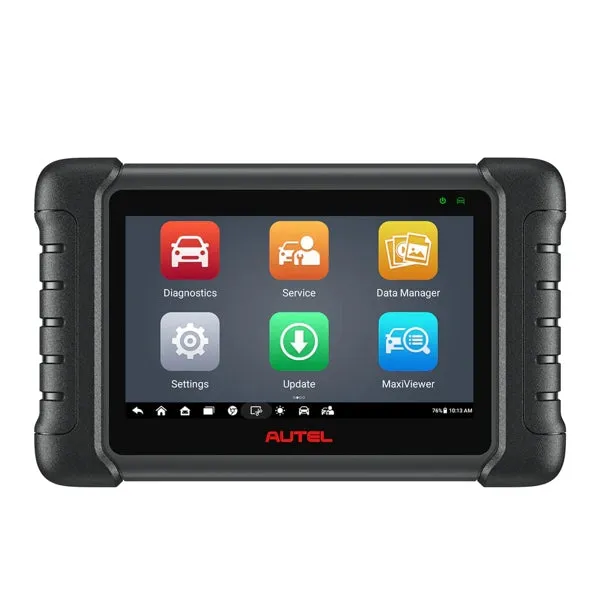

The Autel MaxiCheck MX808S is a comprehensive diagnostic tool that offers extensive capabilities for all US, EU, and Asian OBD2 vehicles from 1996 onwards. This professional-grade automotive diagnostic scanner can access and diagnose all available systems, making it an essential tool for both auto technicians and home mechanics. The device features Auto VIN technology for quick vehicle identification, live data display in multiple formats, and supports a wide range of service functions including service mileage reset, DPF regeneration, and battery registration.

Key Features:

• Read/clear trouble codes for all available systems
• Display live data in text, graph & analog for easy data review
• Auto VIN technology for quick vehicle identification
• Auto Scan all major systems
• Reset service mileage and service intervals
• Relearn parking brake pad after replacement
• Support forced DPF regeneration and adjusting injectors
• Support battery registration and reset
• Service functions – interval light/oil reset light / EPB / injectors etc
• Access to live data streams (oxygen sensor rich/lean indication, coolant temperature, mass air flow etc)
• Communicate with door modules, body controllers, electronic modules
• Support all OBDII protocols and 10 test modes including Freeze Frame, Enhanced Mode 6, Vehicle Info, I/M Readiness, On-Board Monitor and Component Tests
• Graph, record and playback freeze frame data
• ABS Brake Bleeding, Injector Coding, Key Fob Programming

Technical Information:

• Works: All 1996 US-based, 2000 EU-based, and newer vehicles
• Operating System (OS): Android 11
• Processor: Cortex-A9 processor (1.5 GHz)
• Display: 7-inch LCD capacitive touch screen with 1024×600 resolution
• Memory: 64GB
• Connectivity: Mini USB 2.0, USB 2.0, Wi-Fi, Micro SD card (supports up to 32GB)
• Audio Input/Output: Input: N/A, Output: buzzer
• Sensors: Ambient light sensor for brightness auto changing
• Power and Battery: 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
• Tested Battery Life: Around 4.5 hours of continuous use
• Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
• Battery Charging Input: 5 V/1.5 A
• Operating Temp: -10 to 60°C (14 to 140°F)
• Storage Temp: -20 to 70°C (-4 to 158°F)
• Operating Humidity: 5% – 95% non-condensing
• Read/Clear Codes: Yes
• Auto VIN Detection: Yes
• Display live data in text: Yes
• Support IMMO (Anti-theft matching) Functions: Yes
• Oil Reset, EPB, BMS, SAS, DPF, ENG/AT/ABS/SRS Codes: Yes
• Basic TPMS Service, ABS Bleeding, Injector Coding, Suspension Calibration: Yes
• Freeze Frame Data: Yes
• Battery registration and reset: Yes
• Mode: 10
• I/M Readiness: Yes
• Live Data: Yes
• Check Engine Light: Yes
